SKU E3B-MINI-G · Electric Mini Pump · OEM / Private label available

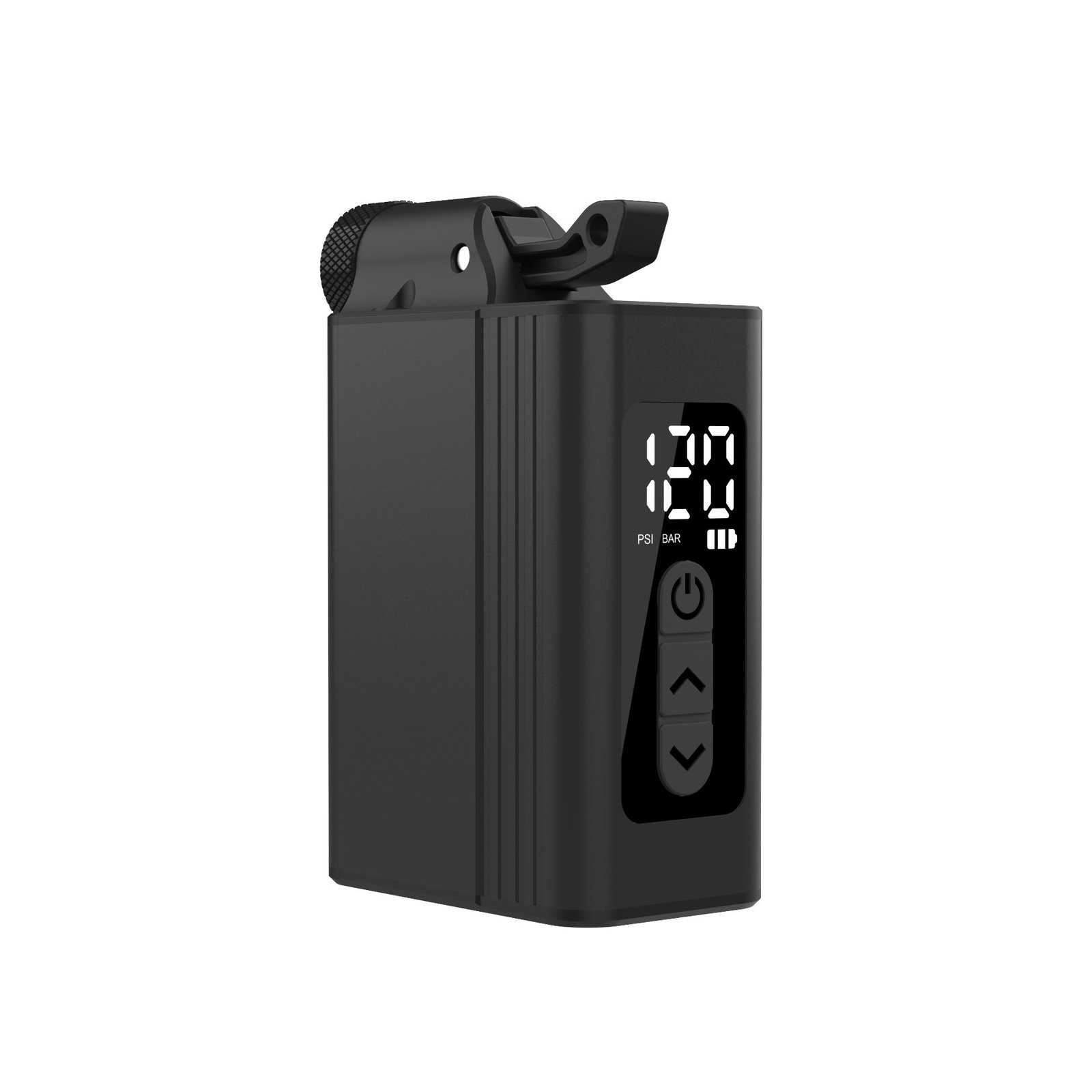

Premium Compact All-Valve Electric Mini Pump
- All-valve inflation head fits Presta, Schrader, Dunlop and CLIK valves directly — no adapter to lose, no conversion step for your customers
- 500mAh removable battery, USB-C charging in approx. 40 minutes

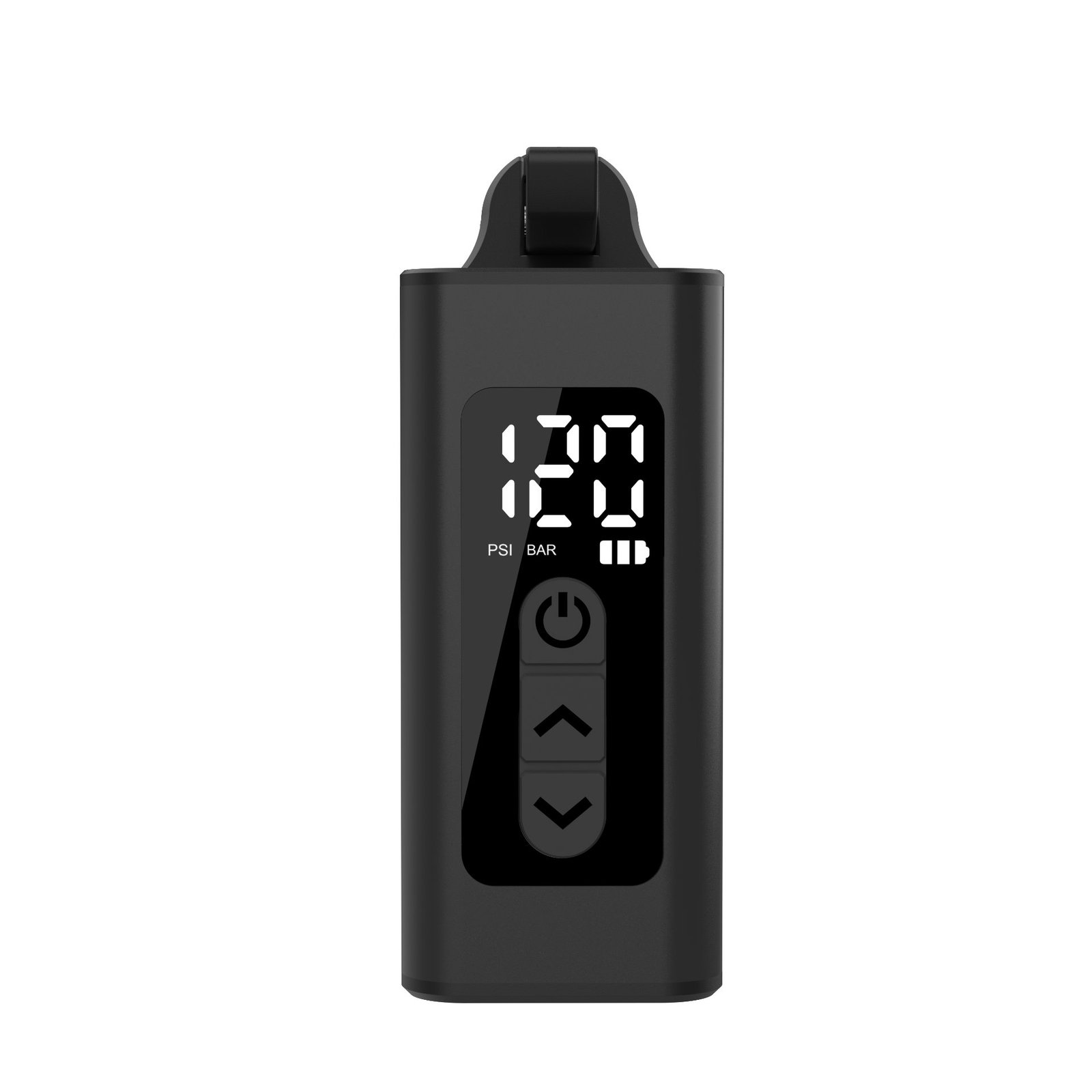

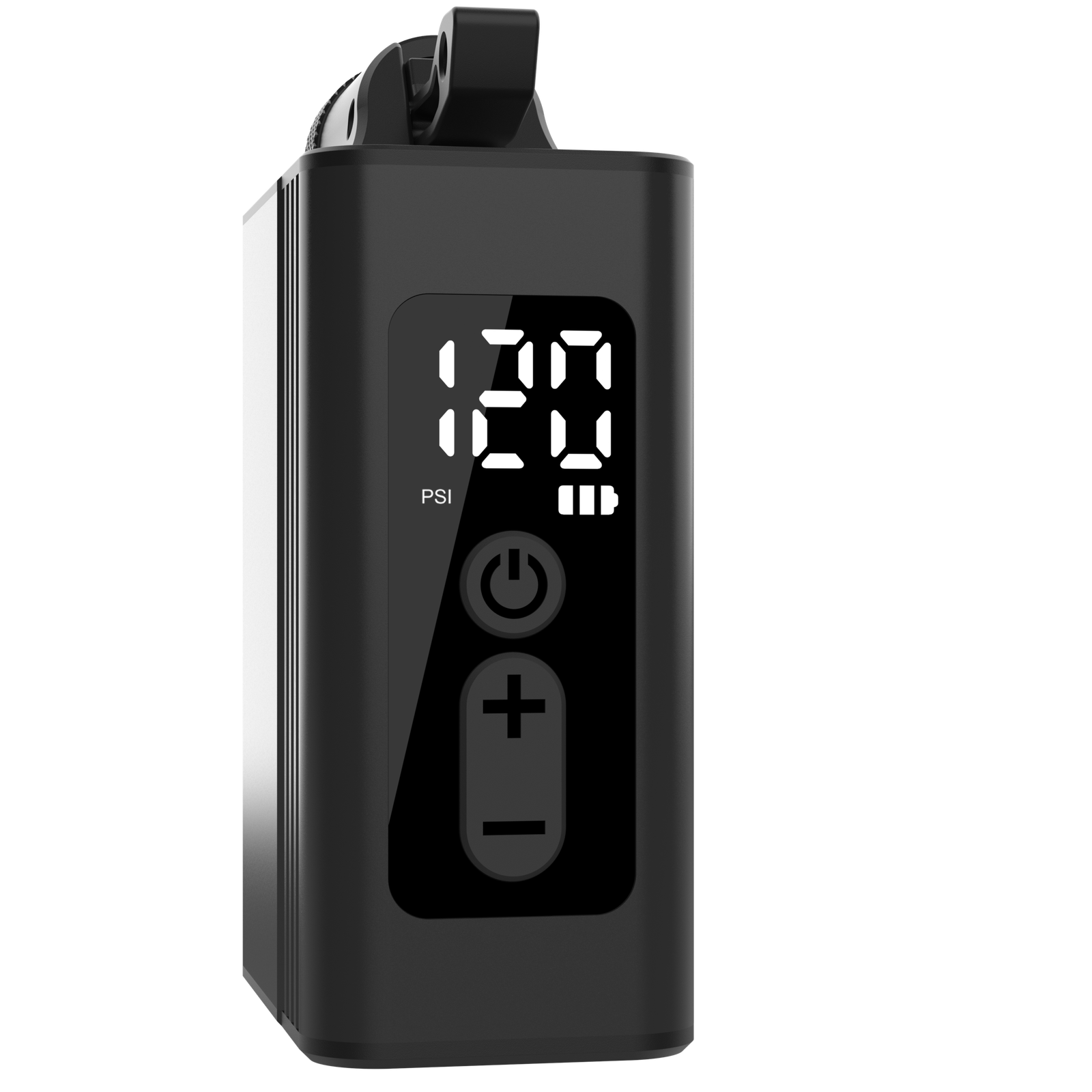

- Digital display with preset target pressure — the pump stops automatically when the preset pressure is reached

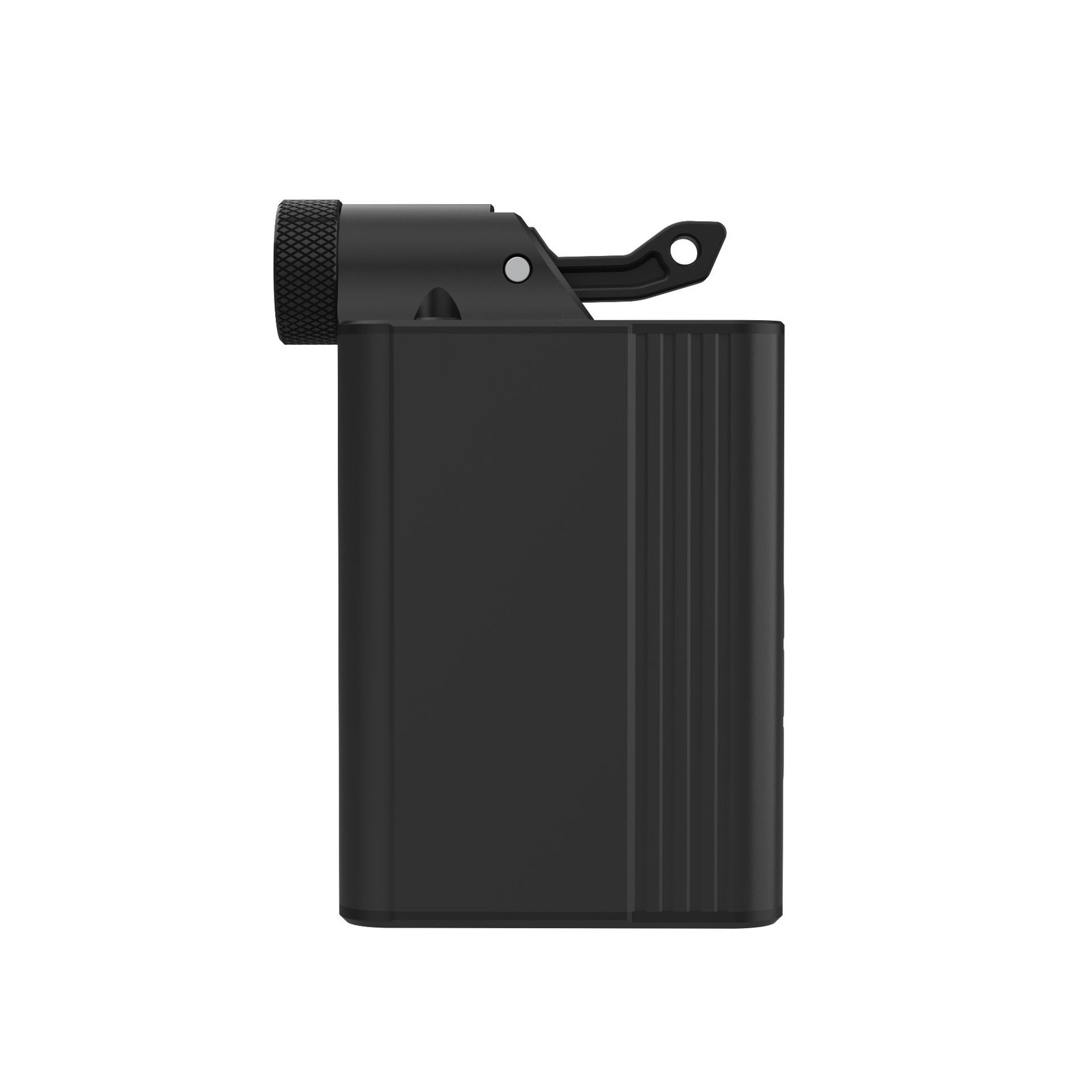

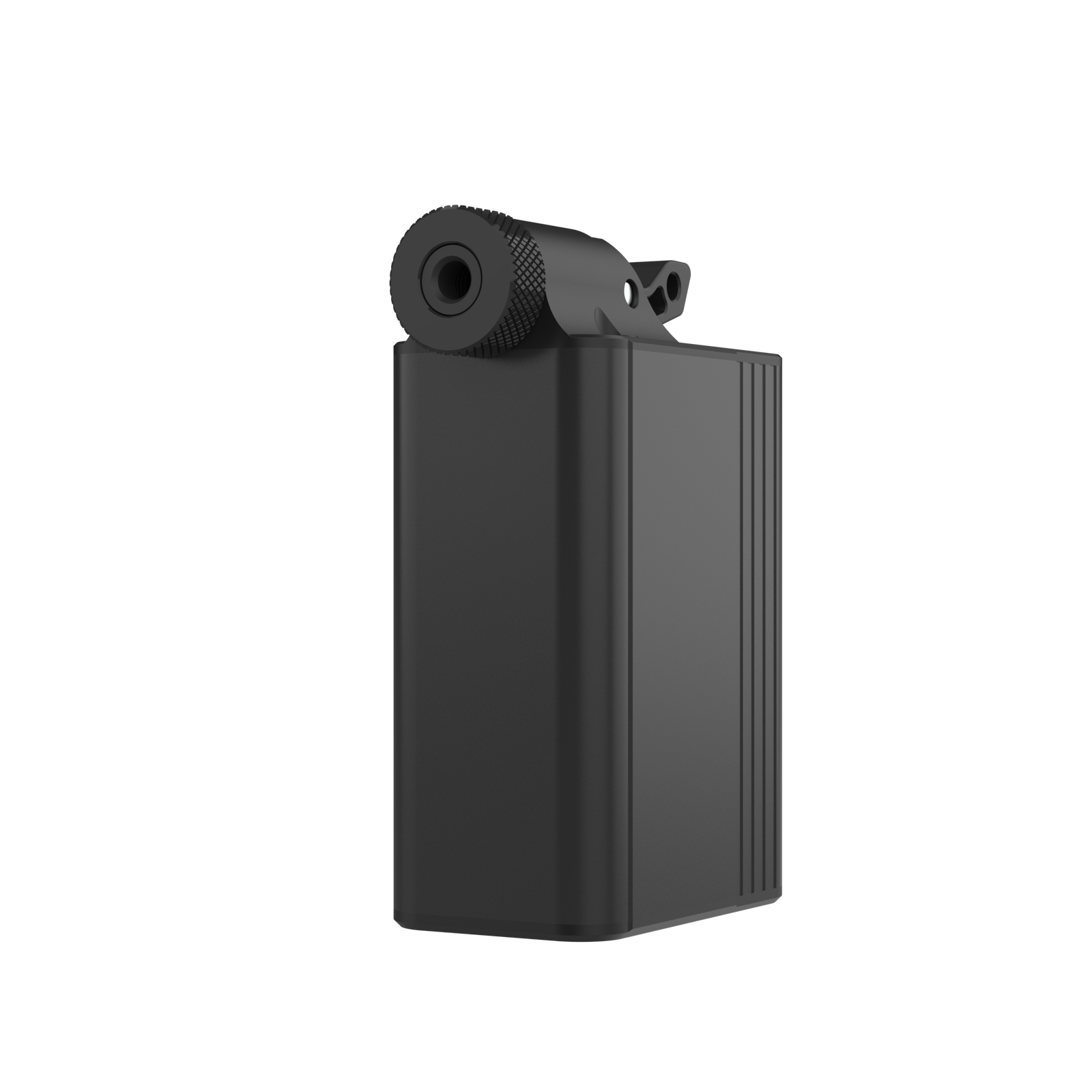

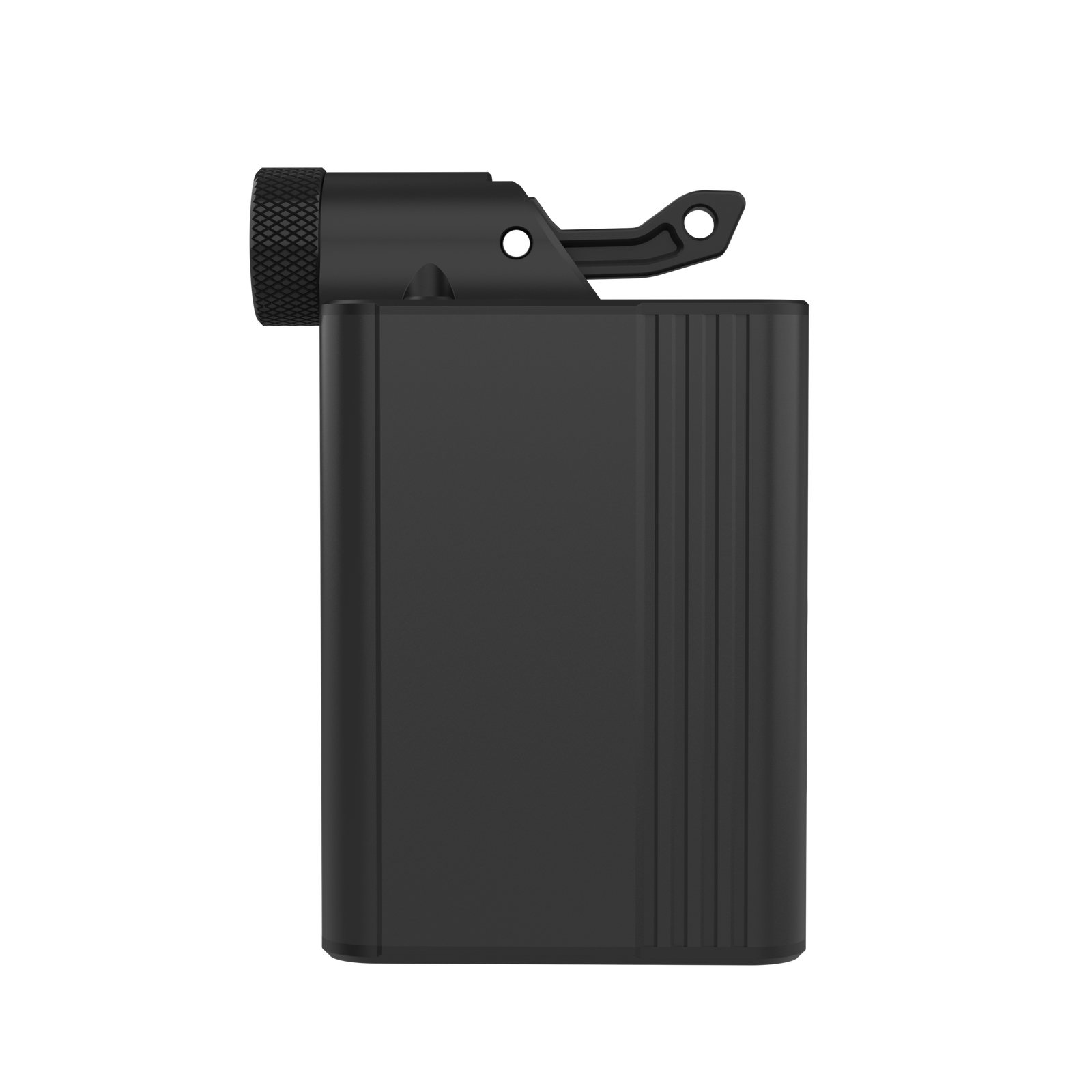

- Aluminum alloy body at 133.8 g and 80 × 49 × 29.5 mm — genuinely pocketable for road, gravel and urban ranges
- Complete documentation package available — CE, RoHS, UN38.3, MSDS and FCC (supplier confirmed; see Compliance section)
Emily Qin · Sales Director · emily@ridingoutdoor.com · WhatsApp / WeChat +86 134 1076 4036

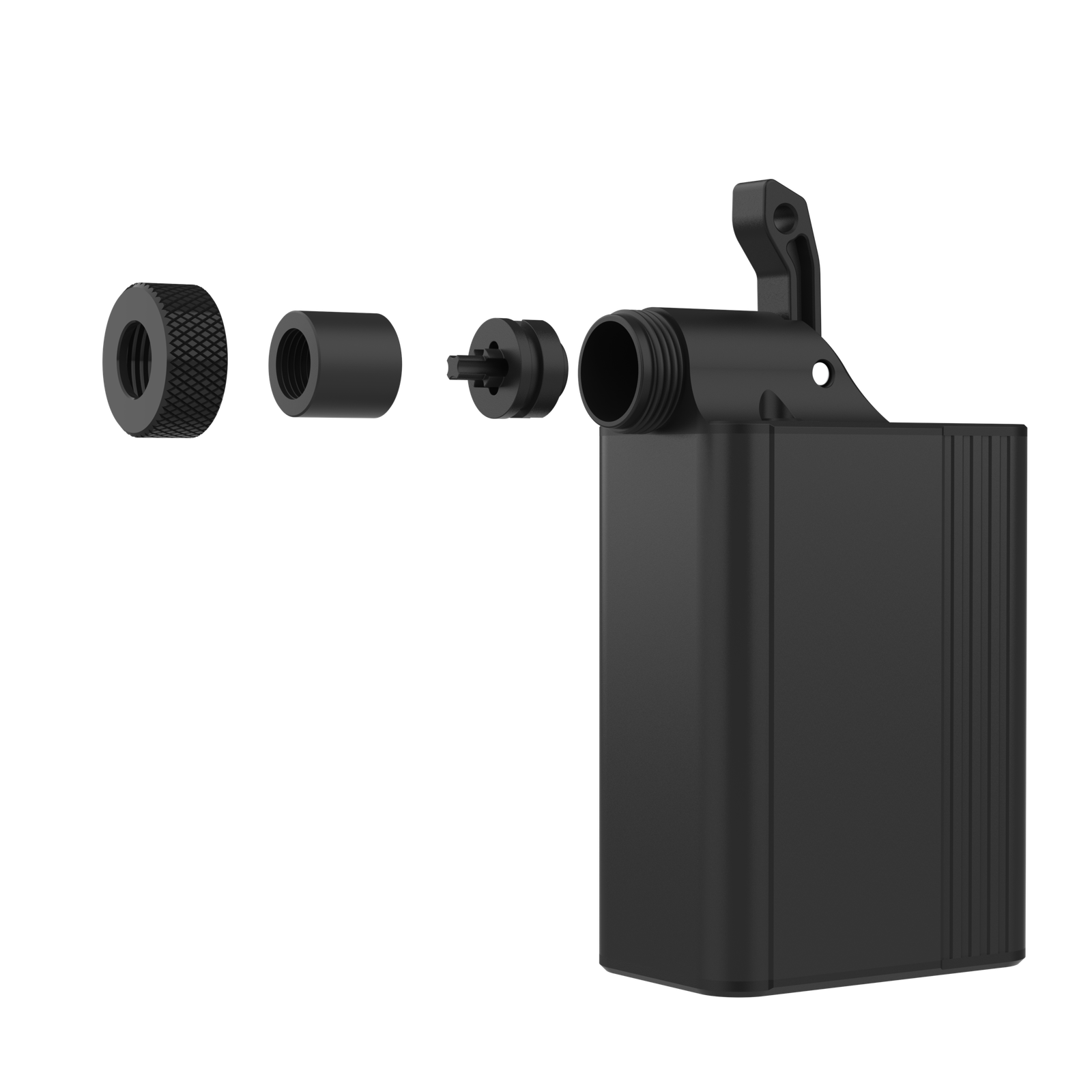

One head. Four valve standards.
The universal inflation head engages Presta, Schrader, Dunlop (Woods) and CLIK valves directly — the same pump serves road, city and e-bike programs across different regional standards. For range planning, that means one SKU can cover multiple bike categories in your market, and the retail story is simple: no adapters to stock, lose or explain.
Technical specifications
| Model | E3B-MINI-G |
|---|---|
| Material | Aluminum alloy |
| Max inflation pressure | 120 PSI |

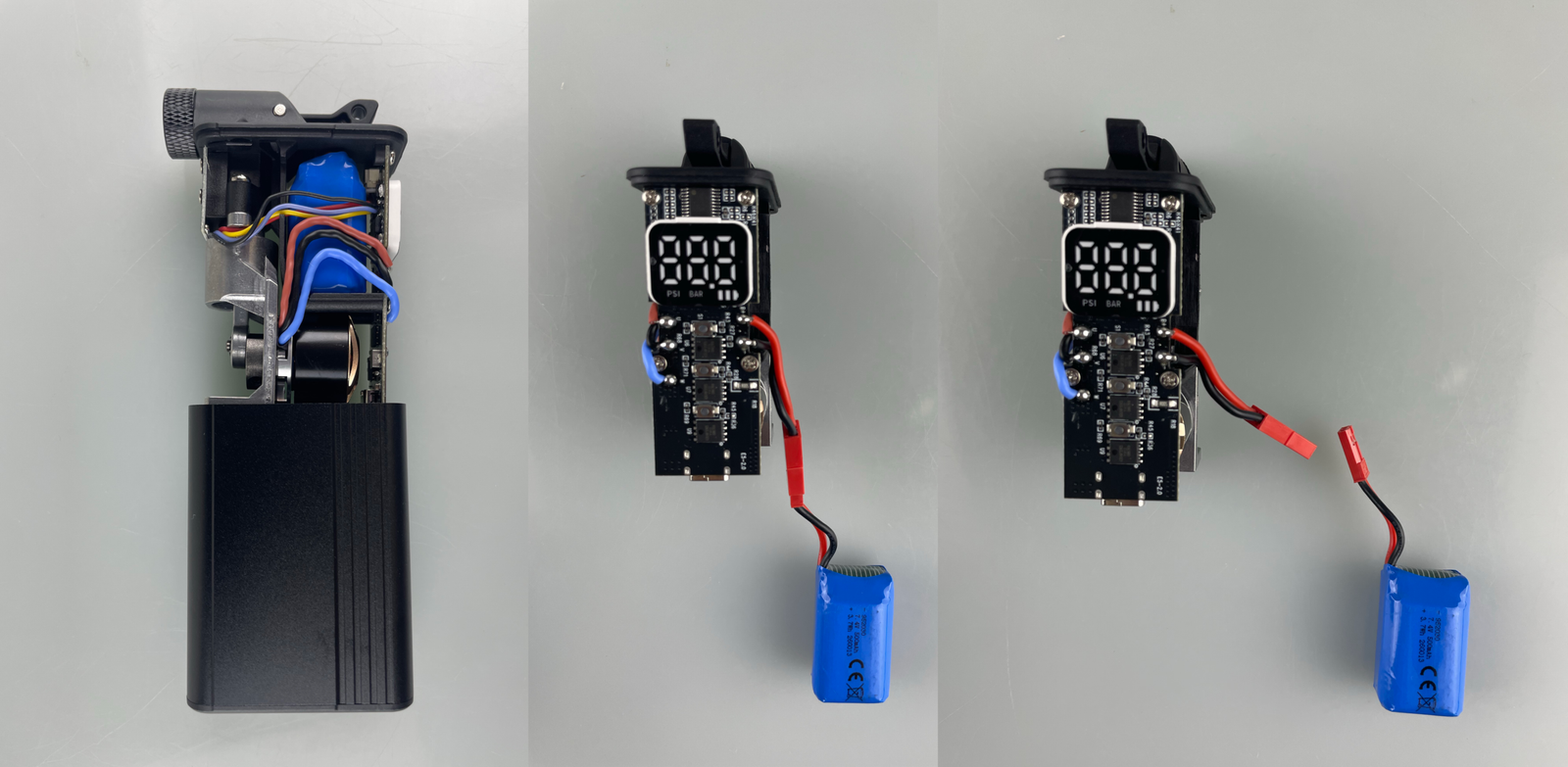

| Battery | 500mAh removable battery |
| Charging | USB-C, approx. 40 minutes (USB-C charging cable included) |

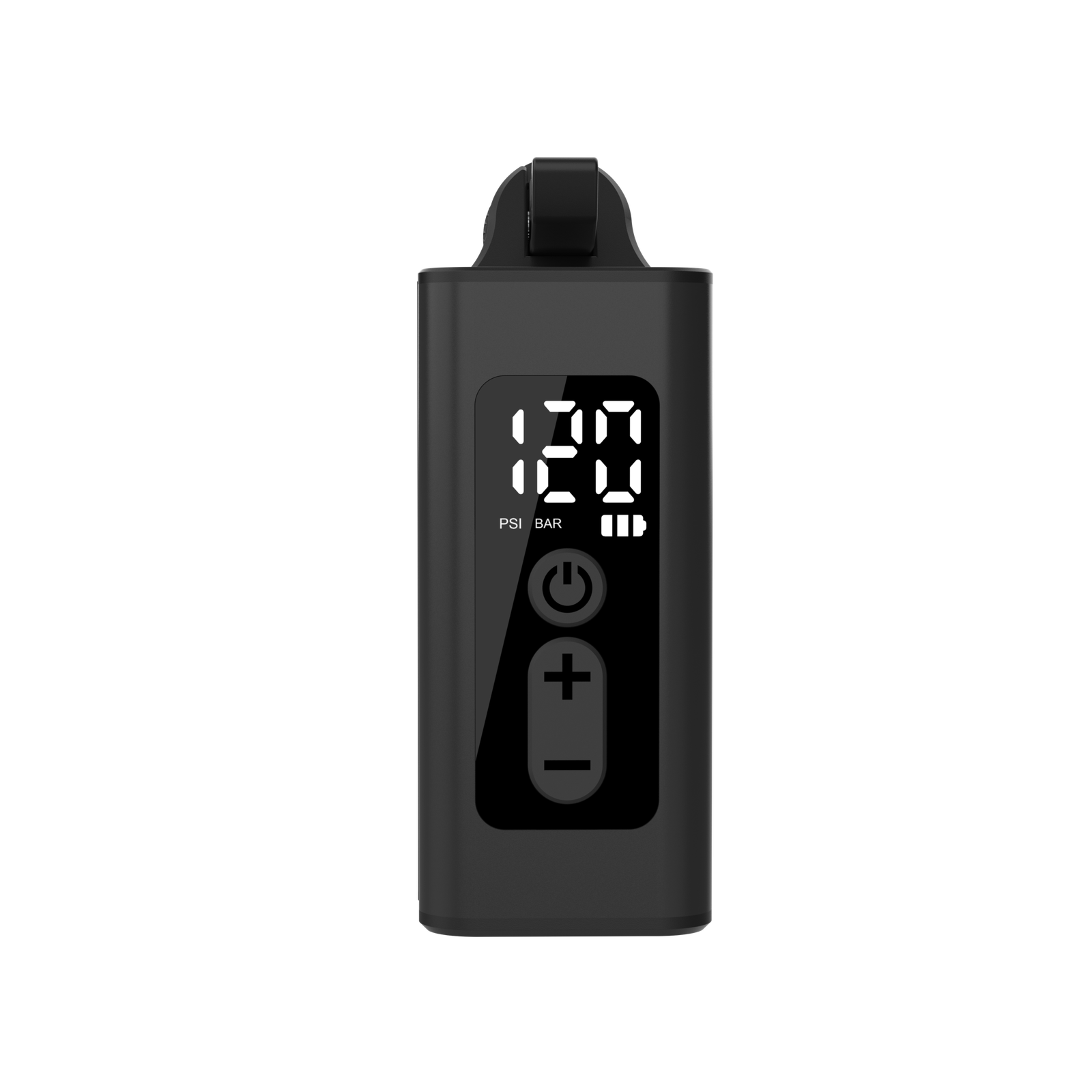

| Display | Digital display; preset target pressure, automatic stop when preset pressure is reached |
| Valve compatibility | Presta / Schrader / Dunlop (Woods) / CLIK — direct fit, no additional adapter required |

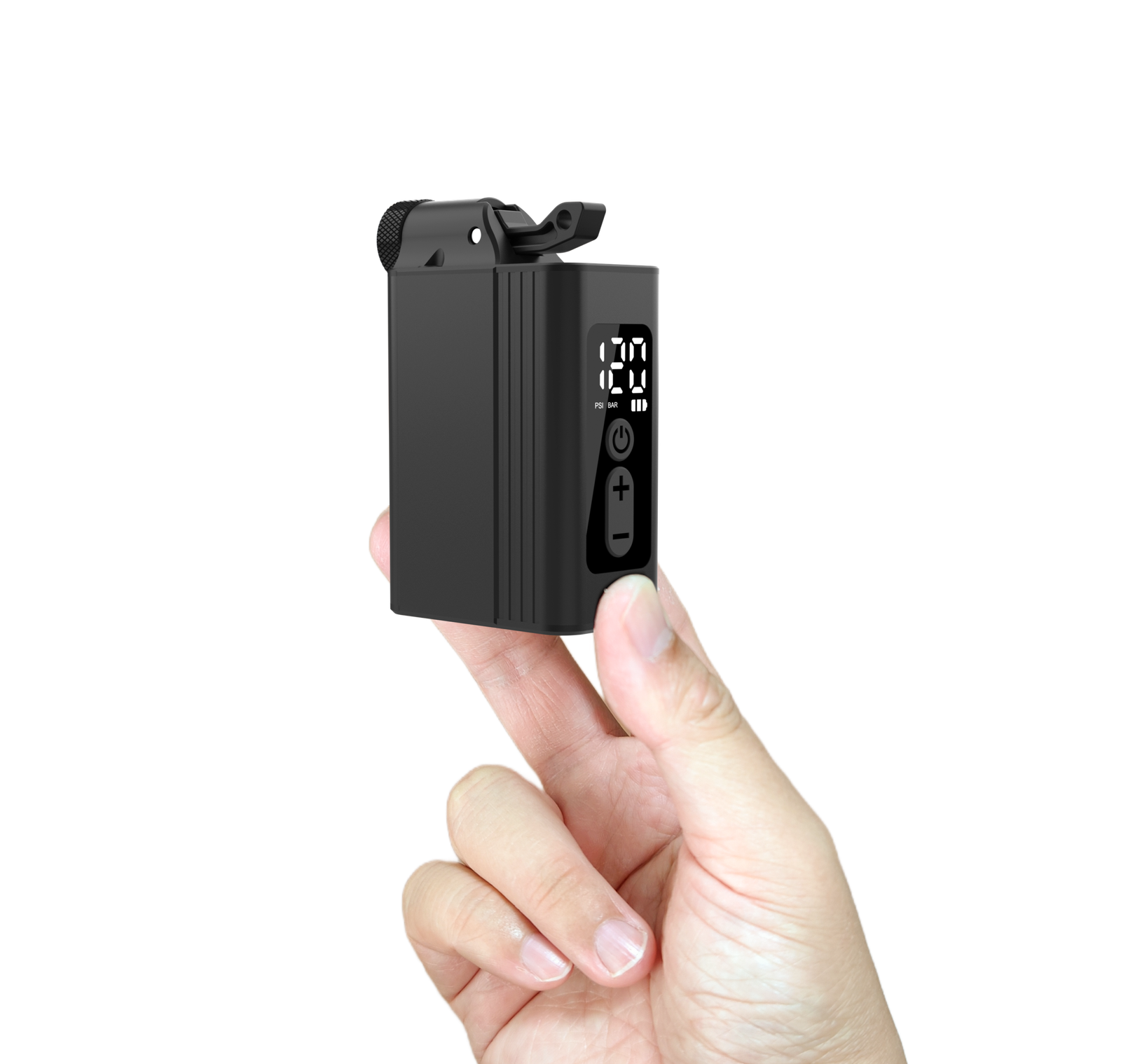

| Dimensions | 80 × 49 × 29.5 mm |
| Weight | 133.8 g |
| Inflation performance | Approx. 50 seconds per tire from 0 to 80 PSI on 700C × 24C tires; approx. 3–4 tires per full charge |

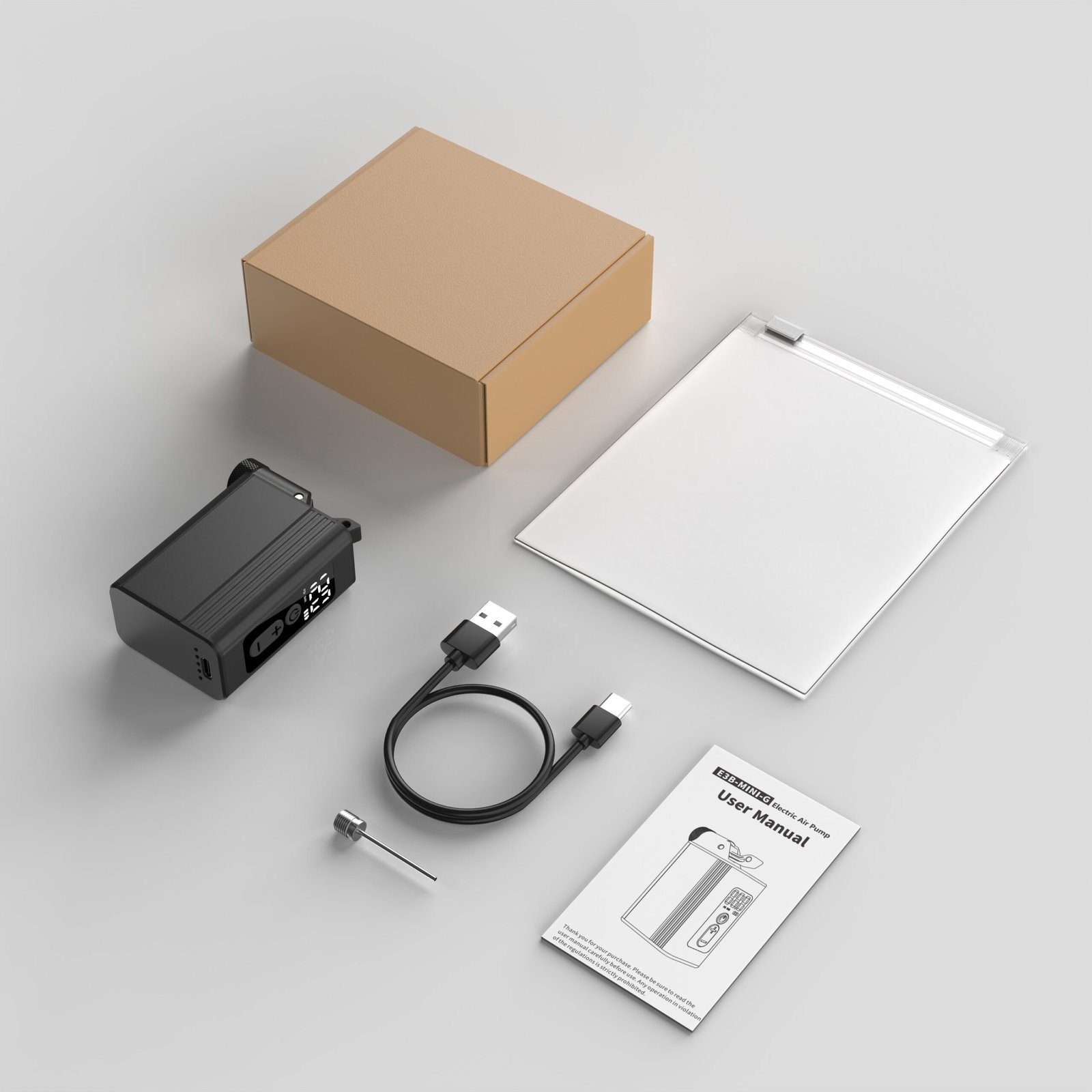

| Package contents | Pump · All-Valve universal inflation head · USB-C charging cable · ball needle · waterproof storage bag |
Inflation performance figures apply to the stated test condition only: 700C × 24C tires, inflation from 0 to 80 PSI. Performance varies with tire size, pressure target and conditions. Specifications are confirmed with the manufacturing partner for this model.
Where this model fits your range
Road & performance
Presta-native road programs: high-pressure top-up and roadside flat handling in a 133.8 g package.
Urban & e-bike
Schrader and Dunlop coverage for city and e-bike tires, with the preset-pressure display protecting high-volume setups.
Retail accessory programs
Complete in-box accessories (ball needle, storage bag, USB-C cable) and private-label options make it a ready shelf-ready SKU.
Make it yours
Private-label options for this model are executed with our manufacturing partner, from logo application to retail packaging.
| Customization option | MOQ | Notes |
|---|---|---|
| Laser-engraved logo | 500 pcs | Logo position adjustable per feasibility evaluation |
| Custom color box | 500 pcs | Retail packaging to your artwork |
| Custom manual | 500 pcs | Language and layout to your specification |
| Custom product color | 1,000 pcs | Subject to color confirmation and feasibility |
Documents available for this model
Available · supplier confirmed
For E3B-MINI-G, the following documents are available: CE, RoHS, UN38.3, MSDS and FCC. Copies are provided to qualified buyers during the enquiry process.
Standard documentation note
Documentation and certification availability varies by model and must be confirmed individually. We confirm the document package for each model with the manufacturing partner before you commit.
Frequently asked questions
Is the battery removable?
Yes. The E3B-MINI-G uses a 500mAh removable battery, charged via the included USB-C cable in approx. 40 minutes.
Which valves does it fit?
The universal head fits Presta, Schrader, Dunlop (Woods) and CLIK valves directly, with no additional adapter required.
How fast does it inflate?
Under the confirmed test condition — 700C × 24C tires inflated from 0 to 80 PSI — it takes approx. 50 seconds per tire, and a full charge handles approx. 3–4 tires. Results vary with tire size and target pressure.
What are the private-label options and MOQs?
Laser-engraved logo, custom color box and custom manual each from 500 pcs; custom product color from 1,000 pcs. Logo position is adjusted per feasibility evaluation of your artwork.
What compliance documents are available?
CE, RoHS, UN38.3, MSDS and FCC documents are available for this model (supplier confirmed) and are shared during the enquiry process. For other models, availability varies and is confirmed individually.
What is included in the box?
Pump, All-Valve universal inflation head, USB-C charging cable, ball needle and a waterproof storage bag.
More all-valve electric mini pumps
The same direct-fit valve compatibility across six confirmed models — from entry level to long-range dual-battery versions.
Request a quote for E3B-MINI-G
Specification sheet, document package and private-label options — tell us your target market and program size, and we will come back with the details.
