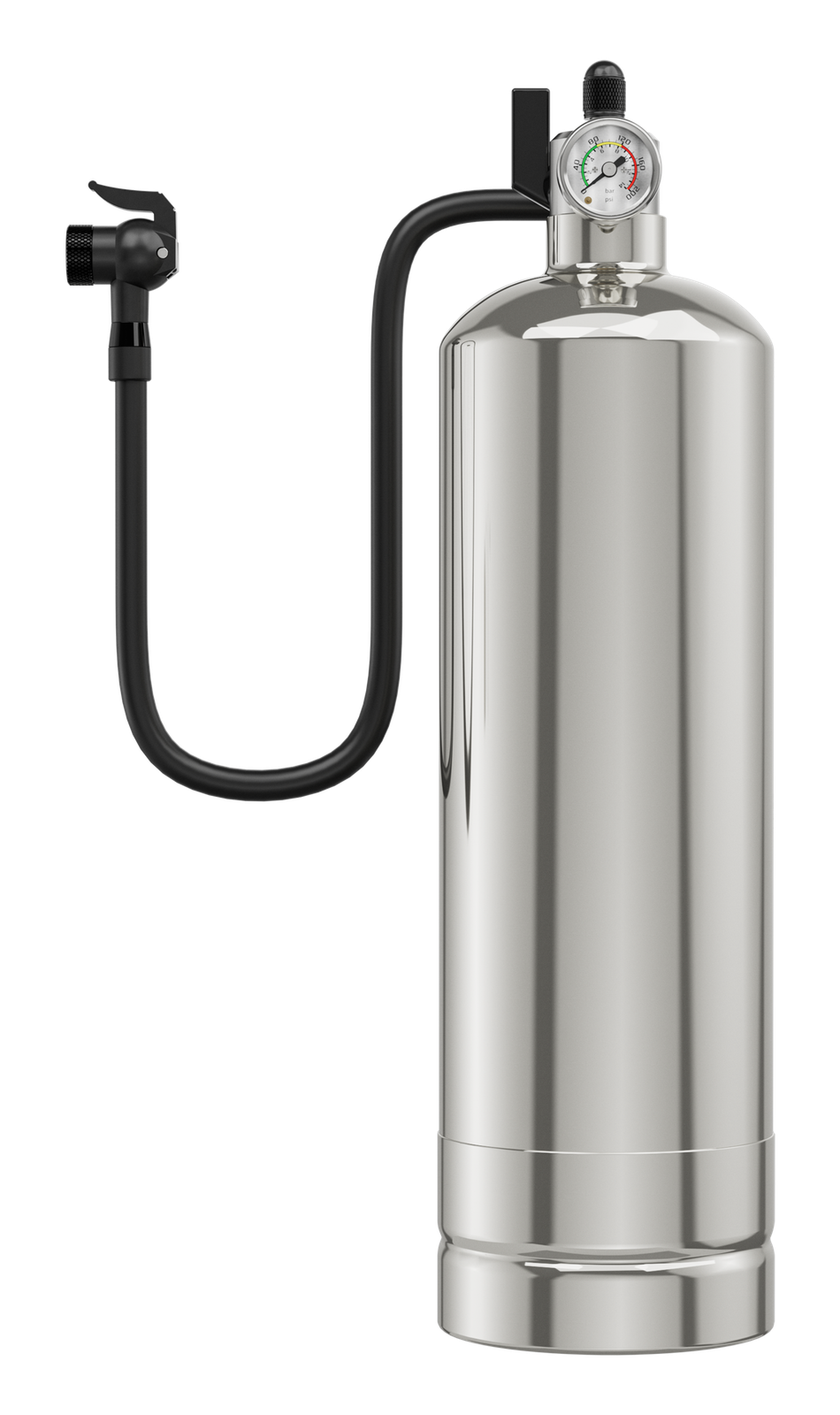

TB304-V5-G 1.35L Tubeless Tire Booster with Pressure Gauge

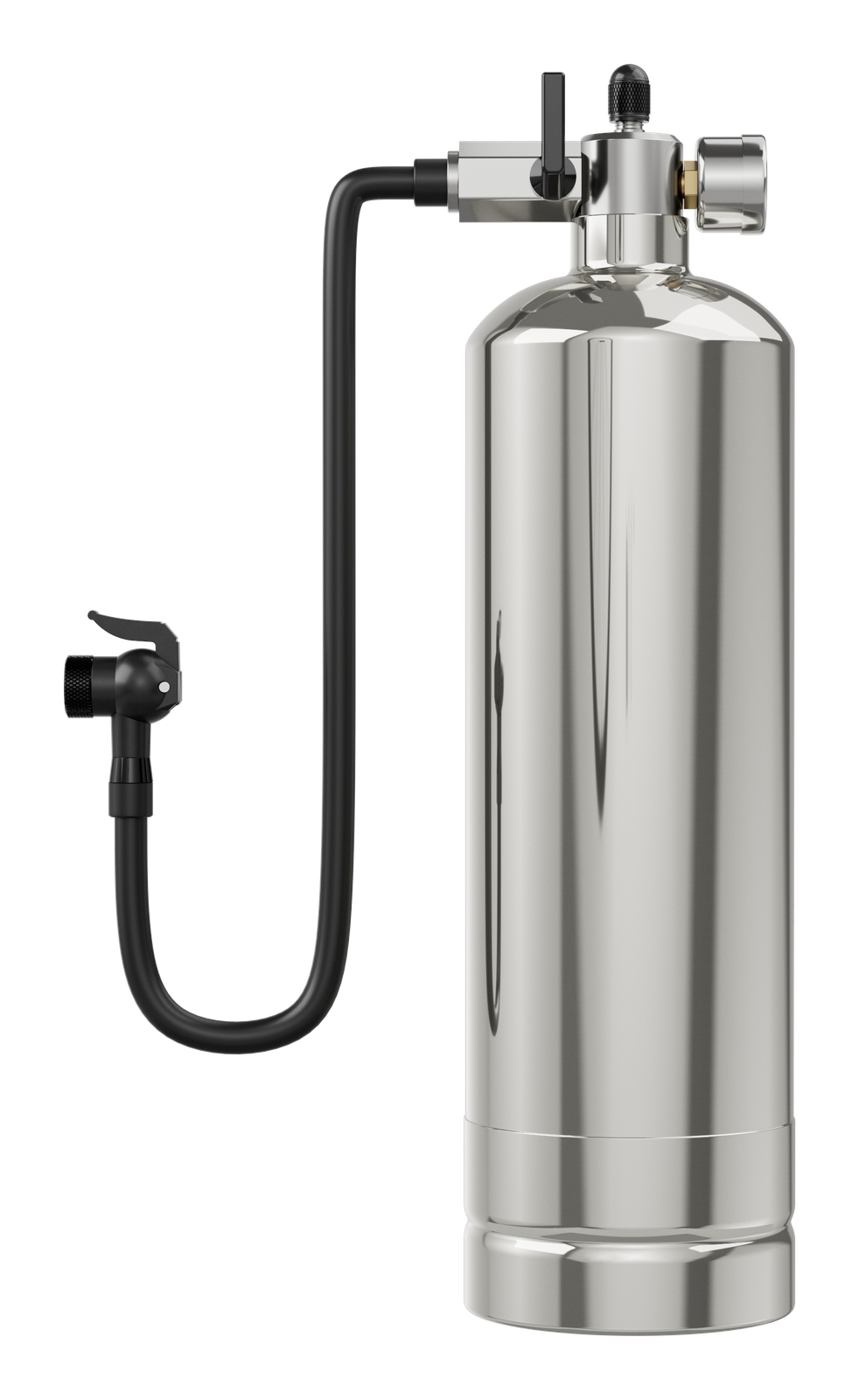

The TB304-V5-G is a stainless steel tubeless tire booster featuring an integrated pressure gauge for monitoring reservoir pressure during inflation preparation. Its 1.35 L air reservoir is designed to store compressed air for rapid release when seating suitable tubeless tire beads.
- Integrated pressure gauge — Direct reservoir pressure monitoring before release.

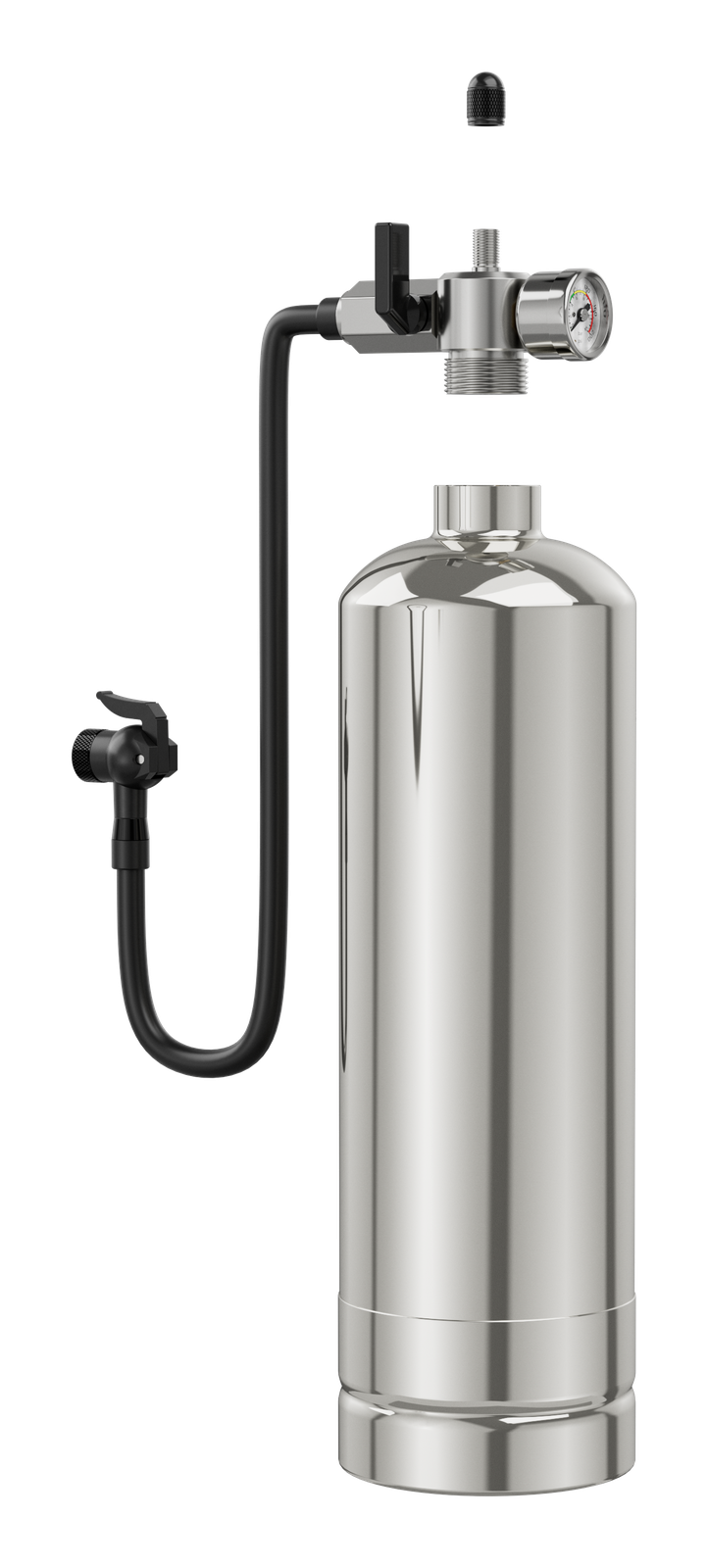

- 1.35 L stainless steel reservoir — 304 stainless steel body, mirror polished.
- 435 mm braided hose — Extended reach for easier operation.

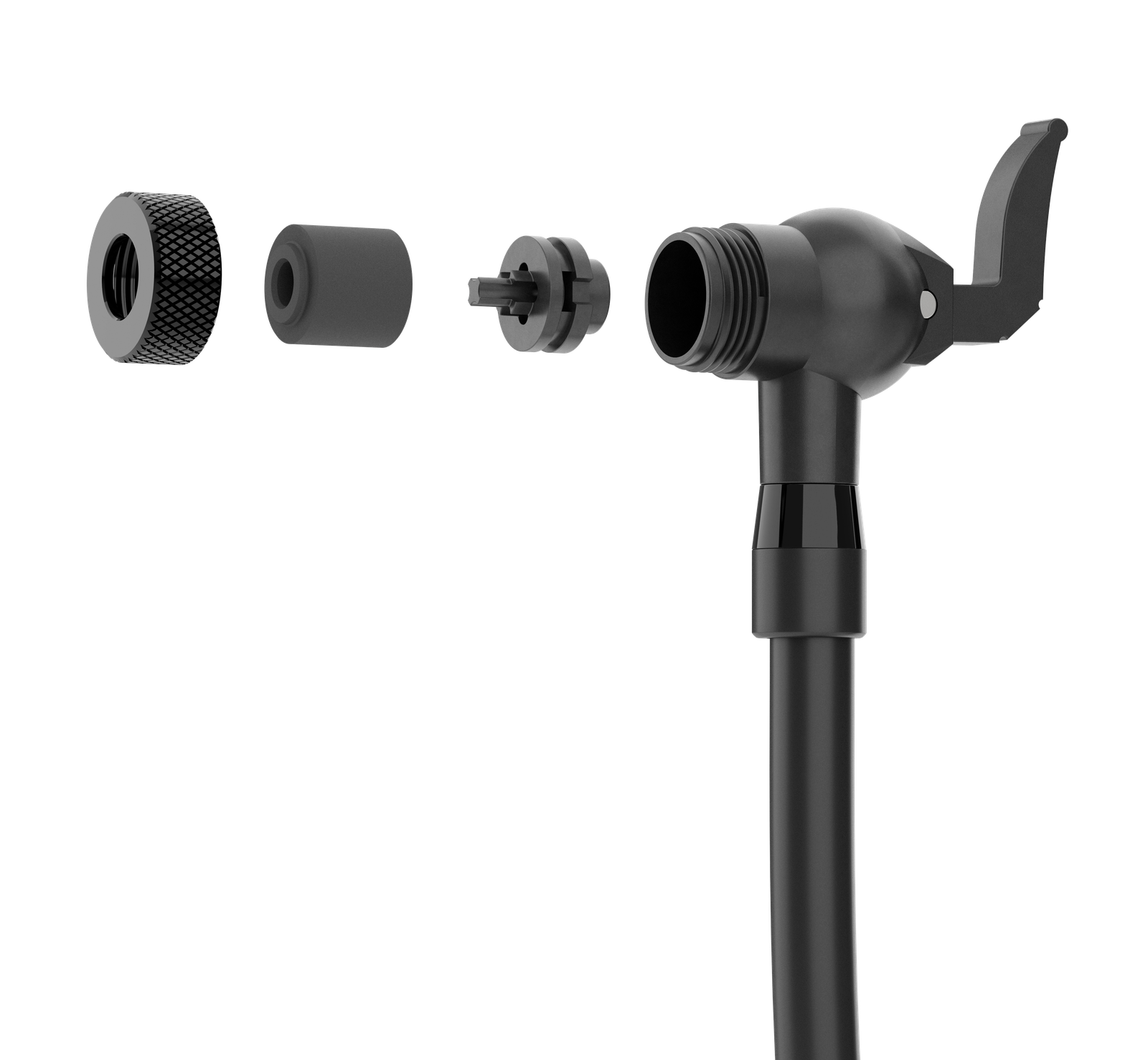

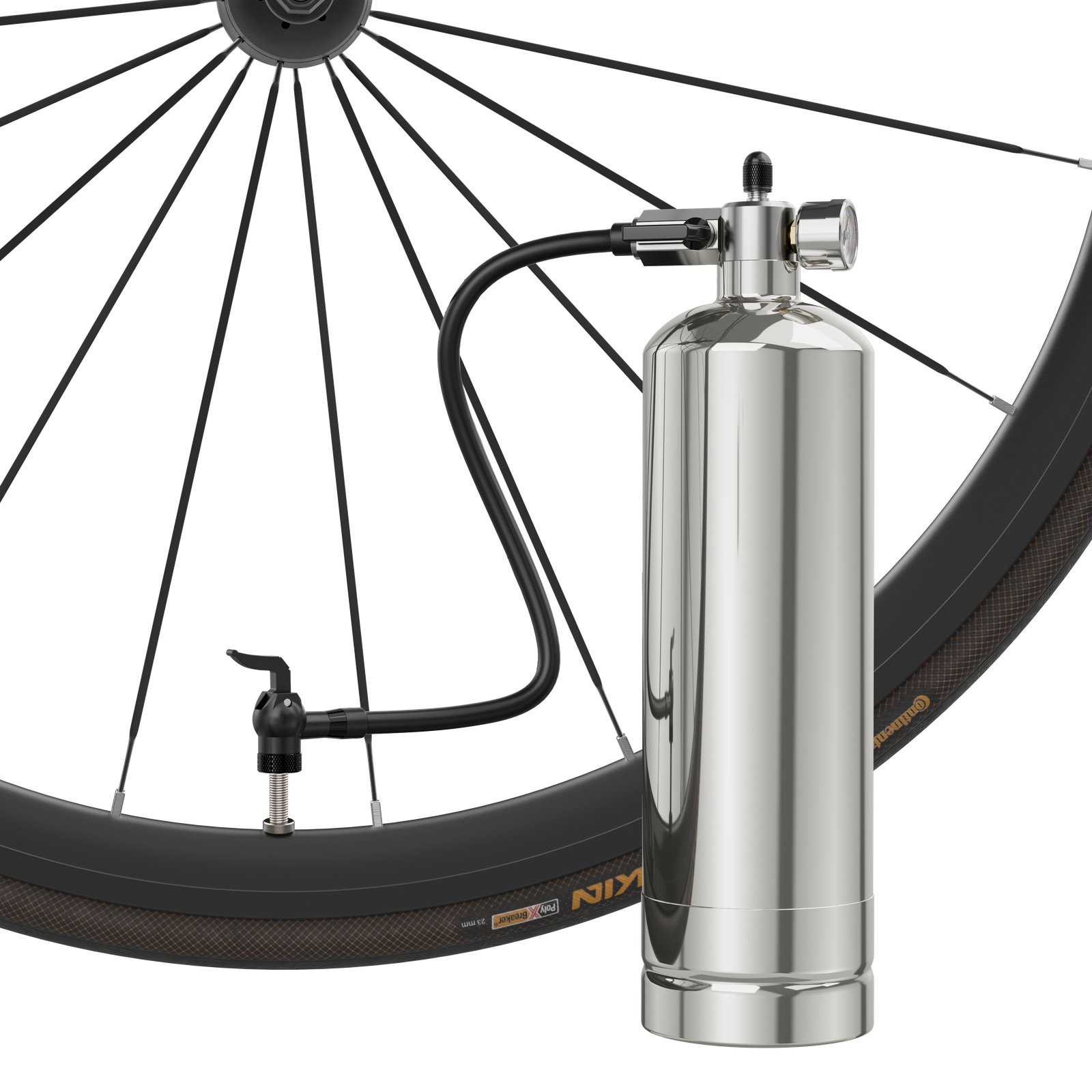

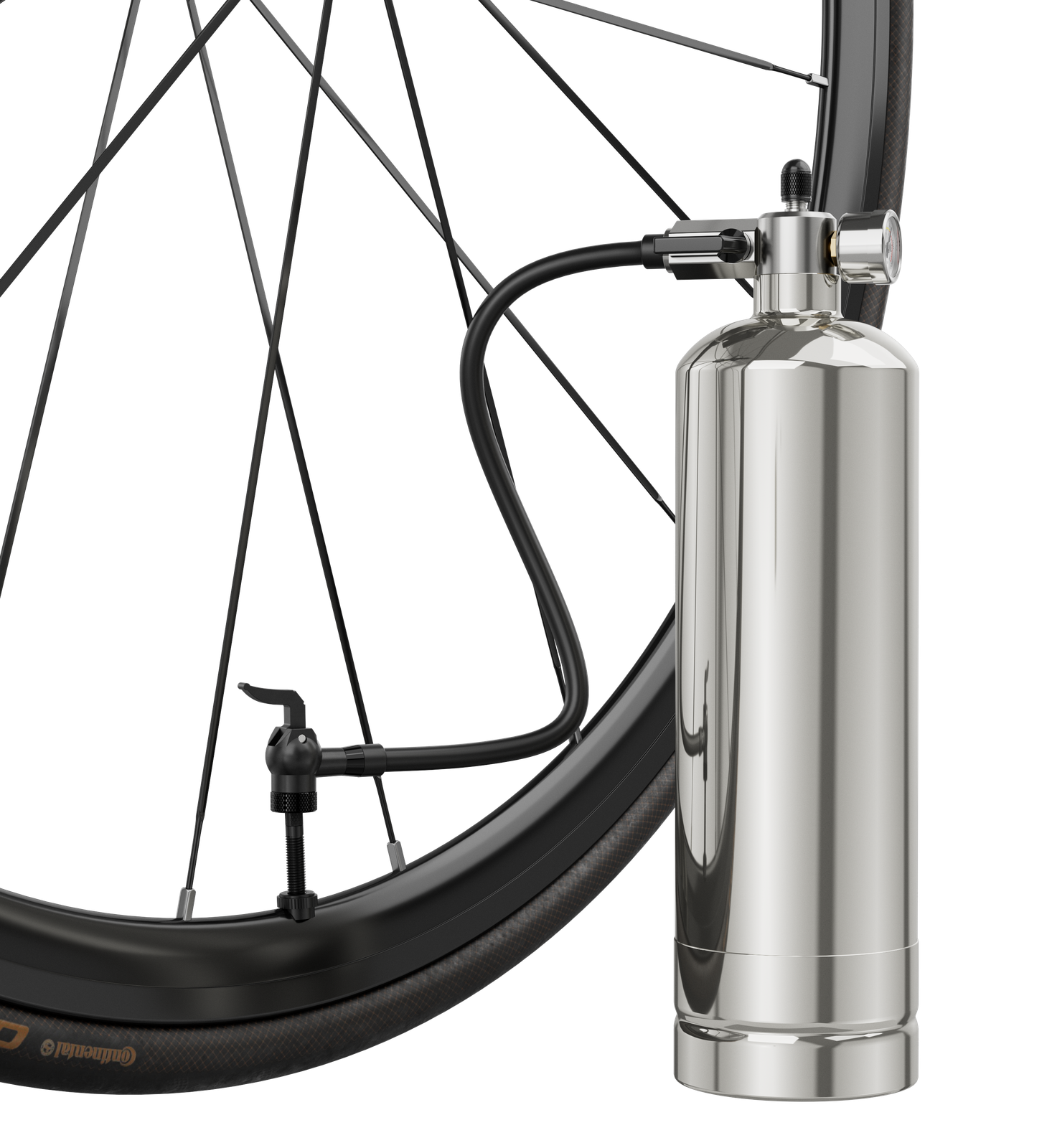

- Direct four-valve compatibility — V5 inflation head fits Presta, Schrader, Dunlop-Woods and Schwalbe CLIK.
- Rapid air release — For seating suitable tubeless tire beads.
- Gauged alternative to TB304-V5 — Same platform with pressure monitoring added.
- OEM and wholesale sourcing support — Branding and packaging coordinated per project.
Emily Qin · Sales Director · emily@ridingoutdoor.com · WhatsApp / WeChat +86 134 1076 4036
The same booster, with the gauge built in

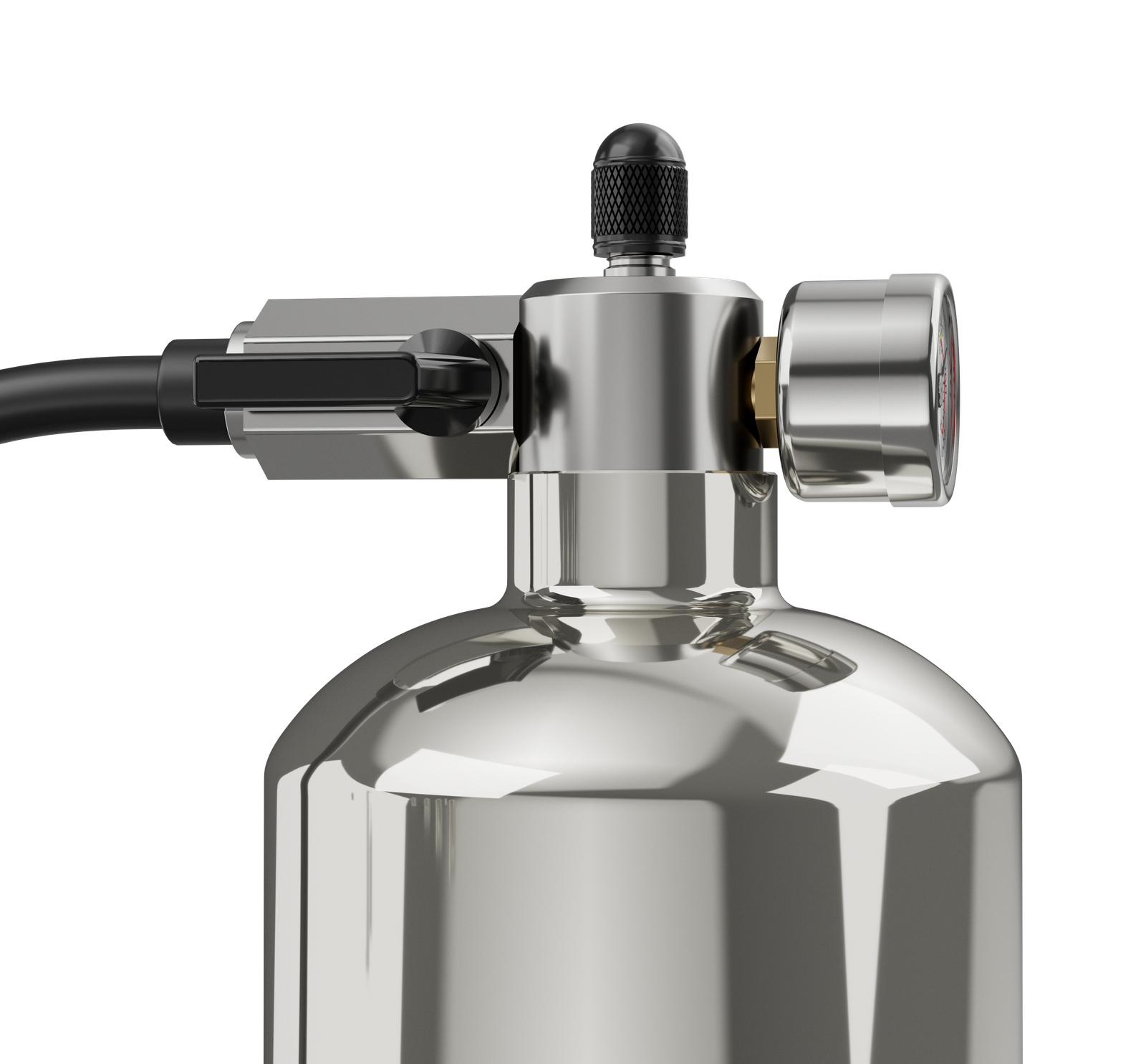

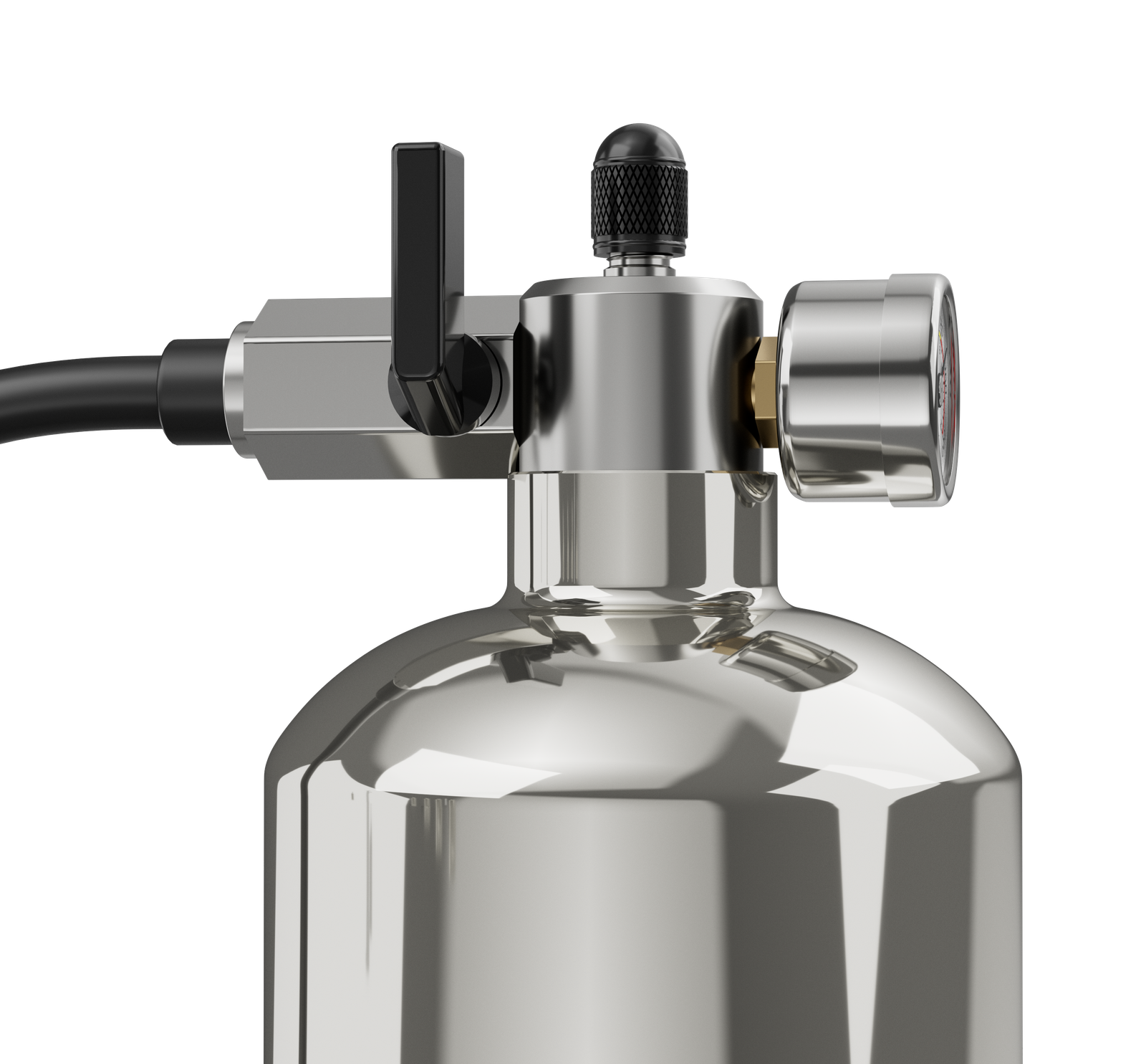

The TB304-V5-G is the gauged version of the TB304-V5 platform. The 1.35 L 304 stainless steel reservoir, 435 mm braided hose and V5 all-valve inflation head are the same; the difference is an integrated pressure gauge mounted on the top assembly, so reservoir pressure can be read directly before the air is released.
That turns the inflation preparation step into a measured one rather than an estimate, which is what shop procedures and documented service protocols need. Compared with the TB304-V5, the TB304-V5-G adds the gauge and is slightly larger and heavier at 350 × 110 × 85 mm and 670 g.
Technical specifications
| Model / SKU | TB304-V5-G |
|---|---|
| Product type | Tubeless Tire Booster with Gauge |
| Reservoir material | 304 stainless steel |
| Reservoir capacity | 1.35 L |
| Hose length | 435 mm braided high-pressure inflation hose |
| Inflation head | V5 |
| Valve compatibility | Presta / Schrader / Dunlop-Woods / Schwalbe CLIK |
| Dust cap | Aluminium |

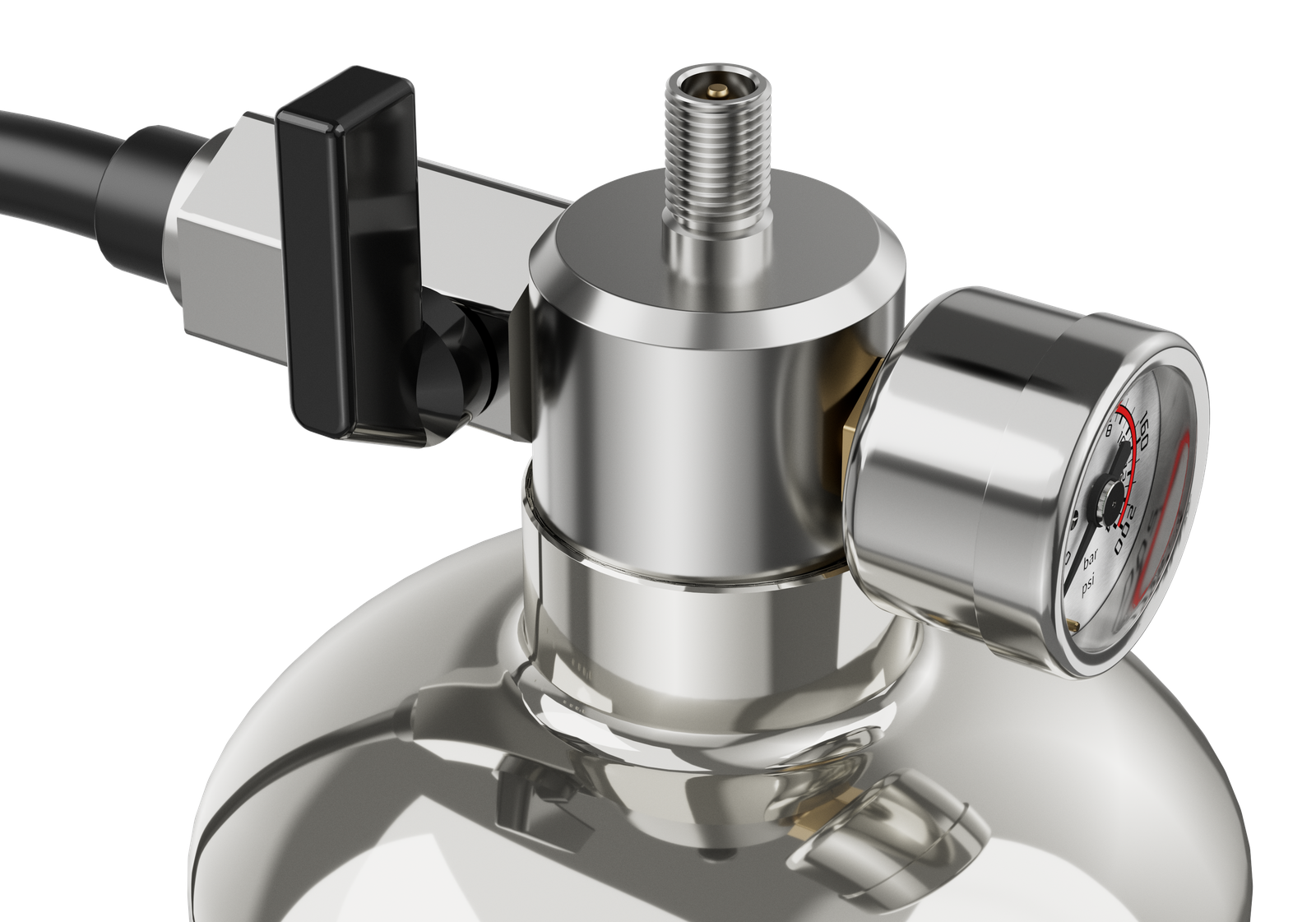

| Switch valve | Yes — switches between reservoir storage and inflation modes |

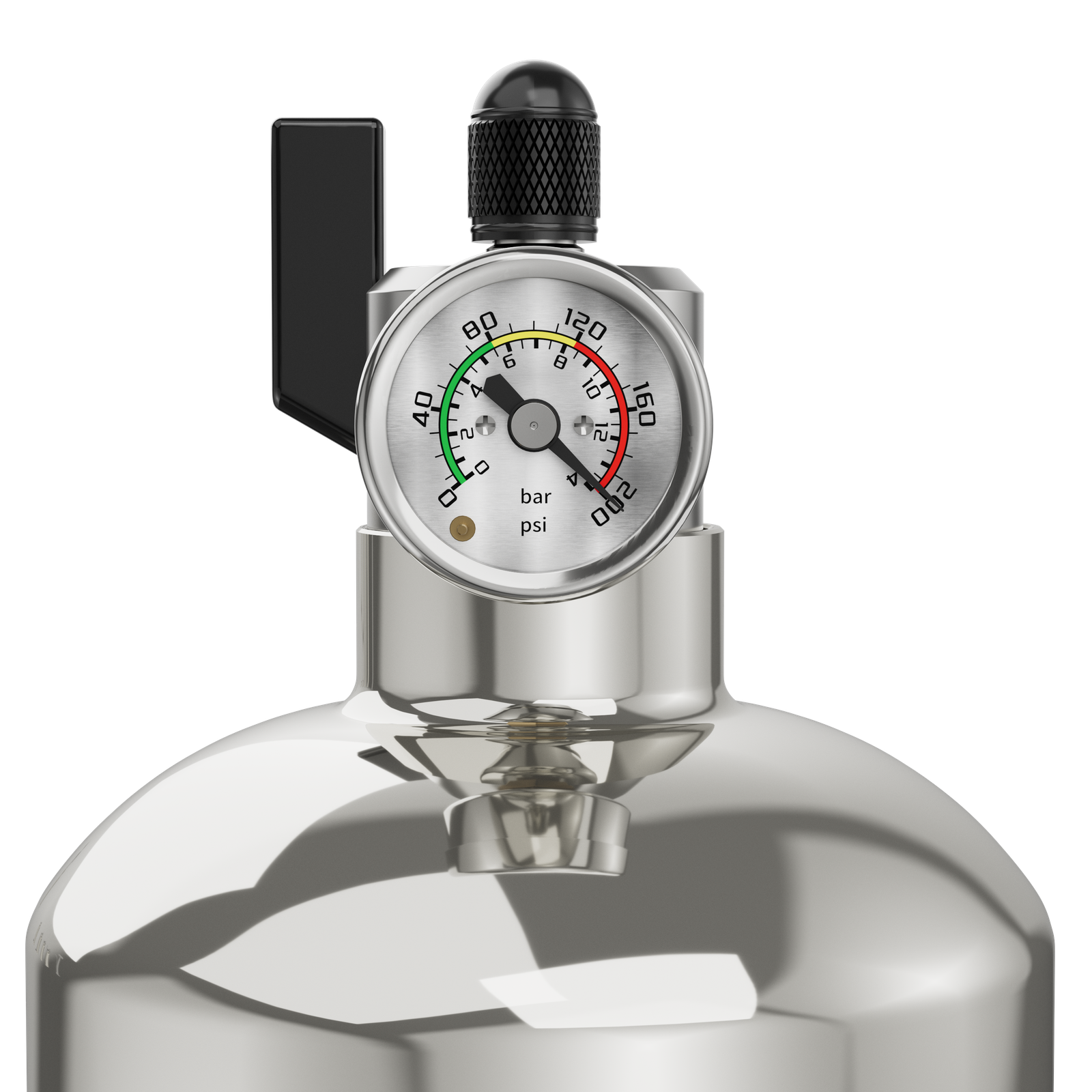

| Pressure gauge | Yes — integrated, mounted on the top assembly |
| Dimensions | 350 × 110 × 85 mm |
| Weight | 670 g |
| Color / finish | Stainless steel, mirror polished |
| MOQ | 1,000 pcs per model (documented configuration) |
Where the TB304-V5-G fits
Workshops & service benches
Where a documented procedure calls for the reservoir pressure to be checked before release.
MTB, gravel & e-bike service
Higher-volume casings that need a volume burst, with the pressure visible beforehand.
Dealer & retail programmes
A gauged service-tool SKU for distributors supplying bike shops.
OEM and private label cooperation
For OEM and private-label projects we coordinate product specification confirmation, sampling, branding, packaging, quality checks and export arrangements with the manufacturing partner. Custom colors, custom packaging and other project-specific requirements are confirmed per order and per project.
Frequently asked questions
What is the difference from the TB304-V5?
The TB304-V5-G adds an integrated pressure gauge. It is also slightly larger and heavier: 350 × 110 × 85 mm and 670 g, against 323 × 110 × 85 mm and 647 g for the TB304-V5.
What does the gauge measure?
Reservoir pressure, monitored during inflation preparation.
What is the reservoir capacity and material?
1.35 L, 304 stainless steel.
Which valves does the V5 head fit?
Presta, Schrader, Dunlop-Woods and Schwalbe CLIK.

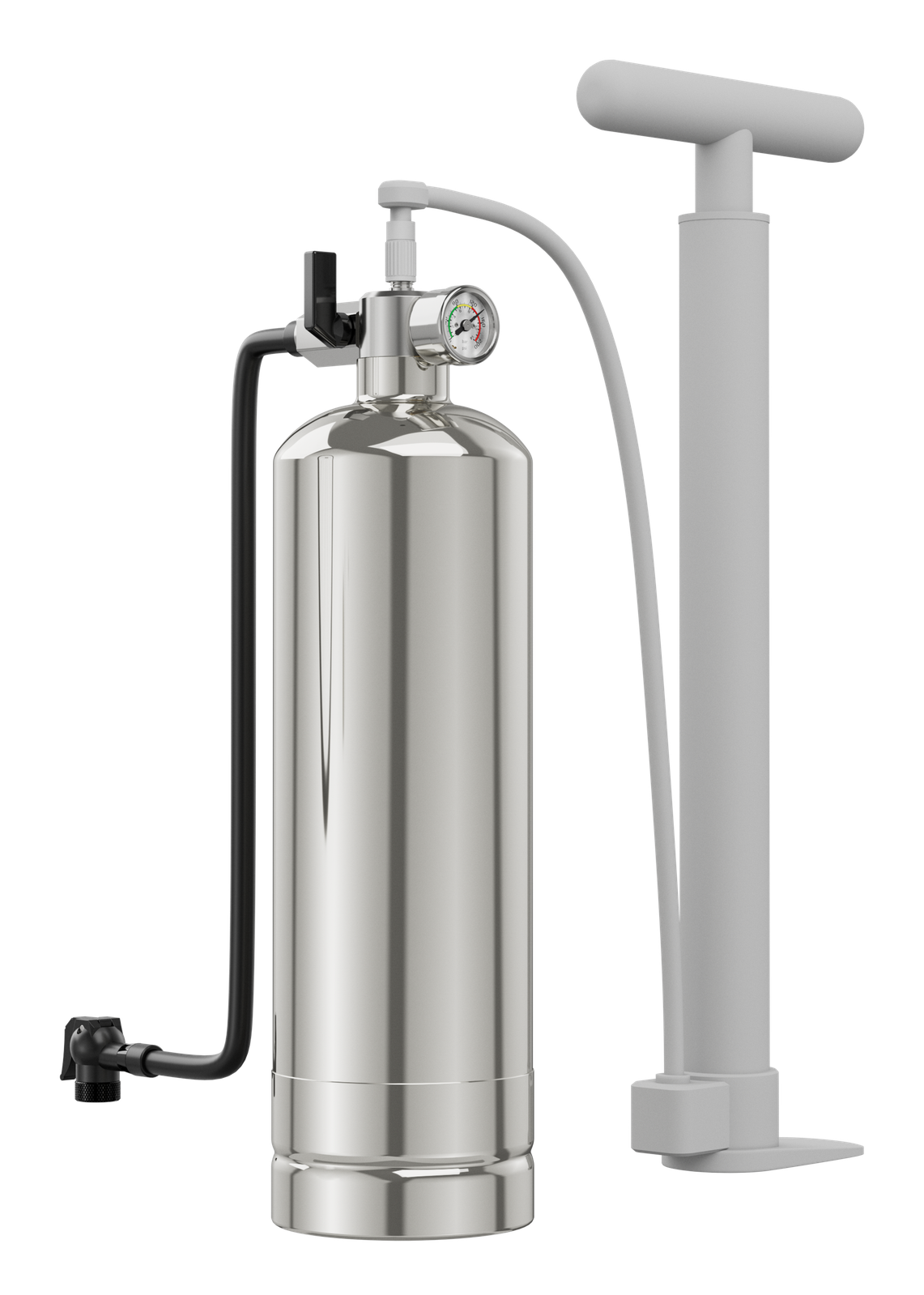

How is the reservoir charged?
With a floor pump, using the switch valve to select storage mode before inflation mode.
What is the maximum working pressure?
Not stated on the product page; confirmed per model and per project before ordering.
What is the MOQ?
1,000 pcs per model for the documented configuration.
What is the lead time?
Lead times are confirmed per order and per project.
Related products
Other confirmed models in the same sourcing program.
Commercial & programme information
The commercial terms that apply to this model. Where a figure is not published, it has not been confirmed and is agreed per project.
| MOQ | 1,000 pcs per model (documented configuration) |
|---|---|
| Pricing | Not published. Quoted per project after specification and destination market are confirmed. |
| Lead time | Not published. Confirmed per project. |
| OEM / Private Label | Available, subject to project confirmation |
